Product Material Lifts / Today's prices ( )

Manually Operated Superlift Advantage

Standard Base

SLA-5 £1420 +vat

SLA-10 £1630 +vat

SLA-15 £1820 + vat

SLA-20 £1970 +vat

SLA-25 £2300 +vat

Straddle Base

SLA-5 £1630 +vat

SLA-10 £1830 +vat

SLA-15 £2230 +vat

(Price includes one speed winch, standard fork and safety brakes) Delivery £89 +vat

Load handling attachments and accessories

Standard forks £82

Adjustable forks £133

Flat forks £320

Boom £117

Fork extensions £97

Load platform £112

Pipe cradle £77

Rough Terrain wheels £97

Stabilser set £205

Call 01536 525 136



Superlift Contractor RAM007


SLC-12 £1520 +vat

SLC-18 £1730 +vat

SLC-24 £1970 +vat.

Load handling Attachments and accessories

Adjustable forks £133

Boom £117

Fork Extensions

£97

Load Platform £112

Pipe Cradle £77

Call 01536 525 136



Load Lifter

LL 5.5 with 8"performance wheels £735 +vat

LL 5.5 with 8" pneumatic wheels £785 +vat

Front swivivel wheels as standard

Accessories :- Brack option £77 +vat

Super Hoist

GH 3.8 £1150 +vat

GH 5.6 £1260 +vat

Price includes platform cradle package

Super Tower

ST 20 £3160 +vat

ST 25 £3360 +vat

Call 01536 525 136



Genie Lift

Standard Base
GL4 £765 +vat

GL8 £875

Straddle Base

GL4 £825

GL8 £940

GL10 £990

GL12 £1090

Counterweight Base

GL4 £1260 +vat

GL8 £1320 +vat

GL10 £1480 +vat

Call 01536 525 136

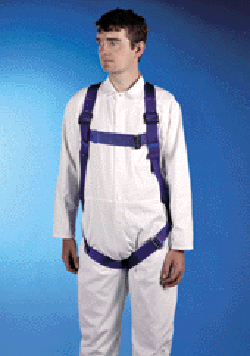

1PL Safety Harness

Part No. : HARNESS 1PL
1PL Harness

Price : £85.00

One fall arrest link at rear.
A lightweight full body harness.
Stainless Steel fittings.
Adjustable at leg loops, shoulders and chest.

CE approved to EN361

Suitable for Work Restraint and Fall Arrest.

Call 01536 525 136




The Material Handler with The Largest Selection of Load Handling Attachments and Accessories Anywhere

The Genie SuperLift Advantage is a package of options you select to design the Superlift you need and want... and you get more value for your money.

It's as easy as one, two, three...

  1. Choose the base and the mast--either Standard Base with five different lifting heights--or Straddle Base with three different lifting heights.
  2. Choose your winch--one speed or two speed
  3. Choose the load handling attachments you need.

Standard Features

  • Patented telescoping mast system
  • Heavy duty design for compactness, safety, strength and rigidity
  • Quick set-up requires no tools and is ready to work in seconds
  • Compact design - legs fold up for easy storage
  • Easy to load
  • In the stored position, roller wheels on the base of the legs allow the unit to be easily pushed around
  • Hold-down bar holds mast assembly in place during transport

Options and Accessories

  • Interchangeable load handling attachments handle a large variety of work loads
  • A safety brake is optional on all units
  • Two speed winch upgrade (one speed winch is standard)
  • Rear transport wheel assembly




Converts your Genie into mini workshop crane

Material Lifts - GENIE

Material Handling



Compact lift.
Up to 4.2 m (13' 9").

Material handling brought within the reach of all pockets enabling the operator to lift and transport from 91 kg to 454 kg (200 lbs to 1000 lbs) and from heights of 1.72 m to 7.9 m (5' 8" to 26').




Versatile ladder access.
Up to 6.94 m (22' 9").

For heavy-duty material handling up to 7.9 m (26').



A complete range of lightweight aluminum scaffolding systems.


GENIE LOAD LIFTER



The Genie load Lifter lifts up to 200 lb (91 kg) to a height of 5' 7" (1.7 m). It is ideal for applications such as picking up and moving items such as parcels, computer and electronic equipment, small appliances, paper and printed material.

Model

Lifting
Height

Lift
Capacity

Genie Load Lifter LL5.5

5'7"
1.7 m

200 lb
91 kg




GENIE SUPER HOIST



The Genie Super Hoist is a portable telescoping pneumatic hoist which uses CO2 or compressed air to lift up to 300 lb (136 kg) to a maximum height of 18' 4 1/2" (5.6 m). the Super Hoist is supplied ready to hook up to a C)2 gas bottle, but can easily be adapted to use compressed air. It is ideal for applications such as lifting, positioning and installing air ducts, overhead sprinklers/plumbing, ceiling panels, forced air heaters/chillers, chimney pipes and electrical fixtures.

Model

Lifting
Height

Load
Capacity

Genie Super Hoist GH3.8

12' 5 5/8"
3.8 m

300 lb
136 kg

Genie Super Hoist GH5.6

18' 4 1/2"
5.6 m

250 lb
113 kg




GENIE SUPER TOWER

The Super Tower lifts and supports lighting systems, sound systems and stage scenery to heights of up to 24' 4" (7.4 m).

Model

Lifting
Height

Load
Capacity

Genie Super Tower ST-20

19' 6"
6.0 m

800 lb
363 kg

Genie Super Tower ST-25

24' 4"
7.4 m

650 lb
295 kg




GENIE LIFT



The Genie Lift lifts up to 500 lb (227 kg) to heights of up to 12' (3.7 m). Available with three base options, various load handling attachments, optional tyres and ladders, the Genie Lift is ideal for appliactions such as transporting appliances, lifting heavy material to or from shelves, moving office equipment, installing ceiling/wall appliances, installation and servicing of overhead TV monitors, record storage and retrieval, HVAC installation and repair, lifting and moving automotive parts, shipping and receiving.

Model

Lifting
Height

Load
Capacity

Genie Lift GL-4

4' 1 1/2"
1.257 m

500 lb
227 kg

Genie Lift GL-8

8' 3"
2.515 m

400 lb
181 kg

Genie Lift GL-10

9' 10 1/2"
3.01 m

350 lb
159 kg

Genie Lift GL-12

12'
3.658 m

350 lb
159 kg




GENIE SUPERLIFT ADVANTAGE



The Genie Superlift Advantage is a manually operated material lift with multiple base, winch and load handling options. The SLA lifts up to 1000 lb (454 kg) of material to heights of up to 26' (7.9 m).

Model

Lifting
Height

Load
Capacity

Superlift Advantage SLA-5

9' 9"
3 m

1000 lb
454 kg

Superlift Advantage SLA-5



1000 lb
454 kg

Superlift Advantage SLA-5



800 lb
363 kg

Superlift Advantage SLA-5



800 lb
363 kg

Superlift Advantage SLA-5



650 lb
295 kg




GENIE SUPERLIFT CONTRACTOR



The Genie Superlift Contractor lifts up to 650 lb (295 Kg) to heights of up to 22' (6.8 m). Designed specifically for the construction industry and contractors, the SLC is extremely durable and easy to transport.

Model

Lifting
Height

Load
Capacity

Superlift Contactor SLC-12

11' 2"
3.4 m

650 lb
295 kg

Superlift Contactor SLC-18





Superlift Contactor SLC-24






From compact machines with low overall weight to heavy lifting requirements with ease and efficiency.

Genie sets the standard by which other lifts are judged. Simply put, we build a better lift. Our innovative designs and reliable products have made Genie a world leader in the production of material lifts, portable aerial work platforms, scissor lifts, and self-propelled telescopic and articulated booms.

The company began in 1966 with the introduction of the Genie Hoist, a portable, pneumatic material lift. We quickly gained worldwide recognition with additional material lifts and a series of aerial work platforms, each one representing a breakthrough in product design. Thirty years later, Genie remains at the forefront of innovative design and quality production. Our lifts are the first choice on construction and industrial sites around the world.

People are the key to our success. Genie has grown from a small core group into a team of more than 1900 engineers, craftsmen, and customer service staff. The goal of this team is complete customer satisfaction, for every customer. To reach this goal, our people excel in four areas:

* We set high quality standards for each step of the manufacturing process, from design to distribution. We monitor our own performance against these standards to assure reliable products.
* We continuously improve our lifting equipment to meet the needs of an ever-changing market. Our efforts to produce better products and harness new technology have earned numerous patents worldwide.
* We deliver the most comprehensive technical support system in the industry. Our team members work together to keep Genie equipment on the job longer.
* We provide our customers with superior value by selling products with ideal capabilities, for a variety of applications, at competitive prices.

Genie products are built in seven specialized manufacturing plants comprising nearly one million square feet. We currently serve customers in 72 countries and continue to expand our global distribution network. Genie is a privately owned company headquartered in Redmond, Washington, USA, with branch offices in the United Kingdom and Western Europe.

The New Genie Scissor GS(TM) Lifts are the best available. A competitively priced alternative to booms and portable aerial platforms, this line is built with the benefit of 30 years of experience and applied technology. The GS series is sturdy, offers narrow access capability, slide-out platform extension, quiet electric drives, rough terrain models, and working heights from 21 to 59 feet (6.4 to 18 m).

Genie® RunaboutTM

* The Runabout features Genie's patented mast system with high strength, interlocking aluminum mast sections and heavy duty lifting chains.
* Narrow 29&Mac184; in (75-cm) width and 53 in (1.35 m) length allows machine to fit in most passenger elevators.
* Low 19 in (48-cm) entry height allows operators to enter the platform easily. Machine can be driven through doorways with operator on board.
* Optional platform extension deck provides 20 in (51 cm) of horizontal outreach.
* Standard non-marking tires and low unit weight allow use on sensitive flooring.
* Standard dual wheel spring-applied, hydraulically released braking system.

All models are driveable when fully elevated. GR-8 and GR-12 models can be driven when fully elevated with the optional platform extension deck deployed. GR-15 can be driven when fully elevated with the optional platform deck retracted.
We have been involved in the sale of quality used access platforms for over eighteen years. Our impressive list of satisfied customers clearly shows that we do the job right.

We will not just try to sell you a platform, we will work with you to ensure that you select the right machine for the task in hand, this includes site surveys and where necessary trial periods of suitability.

Because our background is in engineering we understand the importance of thorough and professional preparation of all our used access platforms.

We only use platform engineers, therefore all our pre delivery inspections are carried out impartially, and if replacement parts are needed we only use manufacturer's original equipment.

If you choose to purchase a vehicle mounted platform from us, rest assured that the vehicle will be subjected to the same rigorous inspection procedures, carried out by independent ministry centres

Once you have purchased an access platform from us, the service does not stop there, we offer full after sales service back up throughout the UK, service contracts and operator training

We have been involved in the sale of quality used access platforms for over eighteen years. Our impressive list of satisfied customers clearly shows that we do the job right.

We will not just try to sell you a platform, we will work with you to ensure that you select the right machine for the task in hand, this includes site surveys and where necessary trial periods of suitability.

Because our background is in engineering we understand the importance of thorough and professional preparation of all our used access platforms.

We only use independent platform engineers, therefore all our pre delivery inspections are carried out impartially, and if replacement parts are needed we only use manufacturer's original equipment.

If you choose to purchase a vehicle mounted platform from us, rest assured that the vehicle will be subjected to the same rigorous inspection procedures, carried out by independent ministry centres

Once you have purchased an access platform from us, the service does not stop there, we offer full after sales service back up throughout the UK, service contracts and operator training


Genie lifting and access equipment as well as a range of other lifting manufacturers equipment allow Powered Access Services to offer a fully comprehensive service to companies purchasing lifting equipment, access equipment a nd lift material handling equipment in the UK, Europe and Worldwide. Pwered Access Services are dealers for Genie Industries and supply many companies with both Access Products and Lift Material Handling Products from the Gen ie Range.

PAS provide a large range of material handling and Lifting Equipm ent but if you don't see a particular product listed please call us as we are only to pleased to offer help and advice on a variety of issues. If you have any queries or comments regarding our products or our website please do not hesitate to contact us. Genie lift and access equipment sets the standard by which other lifts are judged. The innovative designs and reliable products have made Genie Lift a world leader in the production of lift equipment, access equipment, materi al lift, portable aerial work platforms, scissor lift, and self-propelled Genie lift telescopic and articulated booms. Genie lift products.

Contact us now to discuss your Genie lift needs and find out about the full range of Genie lift equipment. Material lifting equipment and material lifts manufactured by Genie easily and safely lift up to 1000 pounds (454Kg.) from ground level to heights of up to 26 feet (7.9 m.). Each model is completely portable and highly manoeu vrable. Below are examples of the variuos models that are available. Load Lifter Super Hoist Genie Lift Superlift Advantage, Superlift Contractor, Super Tower.

For further information of any of these material lifting equipment and mate rial lifts products us now on 01536 525136 or 01536 484733.

Portable aerial work platforms manufactured by Genie. The "Super Series" ca n safely lift one or two people to working heights of up to 46 feet 3 ins. (14.1 m.). Easy to manoeuvre, Genie work platforms offer durability and the convenience of quick set up and operation. Below are some examples of the lifts that are available.

  • Aerial Work Platform Dual Personnel Lift
  • Industrial Work Platform
  • Runabout TRAILER MOUNTED BOOM TZ-34/20

Genie TZ-34/20 is an articulating Trailer Mounted boom with a telescopic pr imary boom. With a working height of 12.36m, the TX-34/20 features the industries leading working envelope and outreach (6.1m). The TZ-34/20 has a lif ting capacity of 200kgs. Hydraulic outriggers are standard and the exclusiv e automatic levelling system provides 11 degree levelling capability from t he ground controls. The system allows the machine to be set up in less that 40 seconds when the operator deploys all four outriggers simultaneously.

TRAILER MOUNTED BOOM TZ 50-30

The exclusive Genie Automatic Leveling System is self-leveling and is standard equipment on all TZ-50 models. This system provides industry-leading 10 degrees leveling capability and allows the operator to hydraulically deploy the outriggers and automatically level the machine. Machine setup can be completed in less than 45 seconds when the operator deploys all four outriggers simultaneously. The system self-levels the machine to 1 degree in all directions. The level sensor alarm will not sound unless the machine is over 21/2 degrees out of level. This built-in tolerance provides resistance to level sensor nuisance tripping, which can be a common occurrence on other trailer mounted booms. This feature increases productivity and sets the Genie TZ-50 apart from the competition. Scissor Lifts by Genie are the best available. A competitively priced alter ative to aerial work platforms and booms, this scissor lift line is built w ith the benefits of 30 years experience and applied technology. The GS scis sor lift series is sturdy, offers narrow access capability, slide out platf orm extension, quiet electric drives, rough terrian models and working heig hts from 21 to 32 feet 9 in. (6.4 to 9.8 m.). GS=E2=84=A2-1532 / GS=E2=84=A2-1932

Nothing beats a Genie Scissor for performance, safety, serviceability and v alue. The solid steel deck platform has a slip-resistant surface. Heavy duty tubular steel guardrails maximize durability. Telescopic end rai l can be raised to accommodate large loads. Lubrication-free, service-free pivot points. Built-in lanyard attachment points. The ergonomic Joystick Controller operates from the platform or the ground. Low noise level allows operation in quiet work environments. High angle steering provides excellent maneuverability. Swing-out battery box and power module allow easy access to componentry. Va riable speed motor extends battery and motor life by using only the energy needed to do the required work. On-board troubleshooting diagnostics notify the operators of possible fault conditions.

Standard Features

GS-1532 has 21 ft (6.5 m) working height and GS-1932 has 25 ft (7.8 m) working height 39 in (1 m) roll-out platform extension Compact 32 in (81 cm) width 600 lb (272 kg) lift capacity for the GS-1532 and 500 lb (227 kg) lift capacity for the GS-1932 Compact design Automatic 25 amp battery charger Proportional controls for lift and drive functions Multiple disc brakes provide smooth deceleration Drive speed interlock limits speed while elevated Emergency stop at both platform and ground controls Manual platform lowering valve Manual brake release Pothole guards Non-marking tires AC wiring to platform Tilt level sensor with an audible alarm Beeper horn Hour meter Options and Accessories Motion alarm Air line to platform Platform swing gate Dual flashing beacon Maintenance-free battery Standards Compliance ANSI/SIA A92.6 CSA CAN3-B354.2-M82 CE compliance option AS 1418.10 GSTM- 4390RT / GSTM- 5390RT Large platform with durable diamond-plate aluminum flooring. A single 60 in (1.52 m) multi-position slide-out extension deck, on the front of the mach ine, comes standard. A second 48 in (1.22 m) slide-out extension deck, on the rear of the machine, is available as an option. Rear platform railing can be removed for easier loading and unloading of ma terials. Slide-out engine tray allows easy access to components. Automatic leveling hydraulic outriggers are standard on the GS-5390 RT, optional on the GS-4390 RT. Standard Features GS-4390 has 49 ft (14.9 m) working height and GS- 5390 RT has 59 ft (18 m) working height 1,500 lb (680 kg) load capacity Positive traction-controlled four-wheel drive 50% gradeability Proportional drive Two-speed lift functions Troubleshooting diagnostics Two self-closing entry gates Foam-filled tires AC wiring to platform Descent alarm Tilt sensor with an audible alarm Horn Hour meter Options and Accessories Motion alarm Dual flashing beacons Propane tank kit (single and/or additional) Dual slide-out extension deck package (front and rear) Hydraulic oil cooler 2,000 watt generator (110 volt/60 hz) Automatic leveling hydraulic outriggers (GS-4390 RT) Non-marking tires Standards Compliance ANSI/SIA A92.6 CSA CAN3-B354.2-M82 CE compliance option AS 1418.10 Genie Lift Telescopic STM Stick Booms set the industry standard for personn el lifts. With working heights from 46 to 131 feet (14 to 39.9 m); articula ted jibs on the Genie lift S45, S60, S85, S105 and S120 models, and options including two - and four-wheel drive, rough terrain packages and multi-pow er capabilities, the Genie Lift series S 45, S 60, S 85, S 105, S 120 will give you just the lift you need. Genie Lift Model S45 S 45 Genie Lift Model S60 S 60 Genie Lift S120 S 120 This is only a small section of the Genie Lift Telescopic Boom range, conta ct us now to further information regarding this range of products.

Genie Lift Articulating "Z" Booms Z30 Z 30 Z45 Z 45 Z135 Z135 provide the ultimate in lifting versatility, with up, out and over positioning capabilit ies. Many Genie lift options are available, including two and four wheel dr ive, a rough terrain package, narrow access models that roll through standa rd double doorways; gas/lpg, diesel, electric, bi-fuel or tri-fuel capabili ties. Choose from the Genie Lift Z30 Z 30 Z45 Z 45 Z135 Z135 models with wo rking heights from 26 to 66 feet ( 7.9 to 20.1 m.); horizontal reach from 8 to 34 feet (2.4 to 10.4 m.). Genie Model Z 30 Z 30 Genie Model Z45 Z 45 Genie Model Z135 Z 135 TELEHANDLERS Rough Terrain Telescopic Boom Material Handler Genie Telehandlers are the perfect heavy-duty choice for loading, unloading , moving and placing loads or materials throughout any work site and cleani ng up when the project is complete. Our high reach rough terrain telehandle rs are the ultimate solution for maximizing work site productivity through efficient movement of material. All-around, cost-effective, reliable machin es with multiple attachments available for increased ROI on any job site.

Product Max lift heightMax lift capacity Maximum Forward Reach GTH=E2=84=A2-5519 Compact Rough Terrain Telehandler 18 ft 10 in (5.74m)5,500 lbs (2,500 kg)11 ft 3 in (3.43 m) GTH=E2=84=A2-6622 Compact Rough Terrain Telehandler 22 ft 5 in (6.83 m)6,600 lbs (3,000 kg)12 ft 9 in (3.89 m) GTH=E2=84=A2-636 High Reach Rough Terrain Telehandler 36 ft (10.97 m)6,000 lbs (2,722 kg)21 ft (6.40 m) GTH=E2=84=A2-644 High Reach Rough Terrain Telehandler 44 ft (13.41 m)6,000 lbs (2,722 kg)27 ft (8.23 m) GTH=E2=84=A2-842 High Reach Rough Terrain Telehandler 42 ft (12.80 m)8,000 lbs (3,629 kg)25 ft (7.62 m) GTH=E2=84=A2-844 High Reach Rough Terrain Telehandler 44 ft (13.41 m)8,000 lbs (3,629 kg)27 ft (8.23 m) GTH=E2=84=A2-1048 High Reach Rough Terrain Telehandler 48 ft (14.63 m)10,000 lbs (4,536 kg)31 ft (9.45 m) GTH=E2=84=A2-1056 High Reach Rough Terrain Telehandler 56 ft (17.07 m)10,000 lbs (4,536 kg)40 ft (12.19 m)

IPAF TRAINING

IPAF Training provided by PAS training to IPAF (International Powered Access Federation) standard. IPAF Training can either be carried out at your premises or we can arrange for it to take place at a training facility in the Midlands. London or Scotlands PASMA TRAINING We provide both Basic and Advanced, Alloy Tower Scaffold Training to PASMA Standard, either at a Training Centre in the Midlands, London or Scotland o r at your own promises. IPAF Safety Harness Training We provide Training for Safe Use, Fitting of and Inspection of, Safety Harnesses at a Training Centre in the London, Midlands or Scotland Depot or at your premises. Courses can be carried out in conjunction with any IPAF Training Course. Used Genie lifting and access equipment. We have a constant stock of used Genie Equipment for sale and we also sell off demonstration kit before it is 12 months old.

Below is just a brief lis t of the stock we have for sale:-

  • Genie Electric Scissors GS1930 GS2032 GS2046 GS3246
  • Genie Diesel Scissors GS3628 RT 4WD
  • Genie Electric Articulated Booms Z30/20N Z34/22N Z45/22 Z45/25 =E2=80=93 Jib
  • Genie Bi-Energy Articulated Booms Z45/22 Z45/25
  • Genie Diesel Articulated Booms Z34/22 Z45/22 Z45/25 Z60/34
  • Genie Diesel Telescopic Booms S40 S45 S60 S80 S85 S65

If there is a used Genie model you are looking for that is not listed call our office on 01530 525136 Demonstration machine prices available on request. Spare parts for Genie JLG Manitou Upright SkyJack Nifty Haulotte. We are able to supply a full range of spare parts for the following makes o f equipment. PAS pride ourselves on the ability to provide an on site demonstration of a ll our products. This demonstration enables you as a customer to see the be nefits of a particular product on site prior to purchasing.

Genie lifting and access equipment as well as a range of other lifting m anufacturers equipment allow Powered Access Services to offer a fully compr ehensive service to companies purchasing lifting equipment, access equipmen t and lift material handling equipment in the UK, Europe and Worldwide. Pwe red Access Services are dealers for Genie Industries and supply many compan ies with both Access Products and Lift Material Handling Products from the Genie Range. PAS provide a large range of material handling and Lifting Equ ipment but if you don=E2=80=99t see a particular product listed please call us as we are only to pleased to offer help and advice on a variety of issu es.If you have any queries or comments regarding our products or our websit e please do not hesitate to contact us.

Genie lift and access equipment sets the standard by which other lifts a re judged. The innovative designs and reliable products have made Genie Lif t a world leader in the production of lift equipment, access equipment, mat erial lift, portable aerial work platforms, scissor lift, and self-propelle d Genie lift telescopic and articulated booms. Genie lift products. Co ntact us now to discuss your Genie lift needs and find out about the full r ange of Genie lift equipment.

Material lifting equipment and material lifts manufact ured by Genie easily and safely lift up to 1000 pounds (454Kg.) from ground level to heights of up to 26 feet (7.9 m.). Each model is completely porta ble and highly manoeuvrable.  Below are examples of the variuos models that are available.


Load Lifter

Super Hoist

Genie Lift


Superlift Advantage


Superlift Contractor


Super Tower




For further information of any of these mat erial lifting equipment and material lifts products us now on 01536 525136 or 01536 484733






Portable aerial work platforms manufactured by Genie. The "Super Series" can safely lift one or two people to working heights of up to 46 feet 3 ins. (14.1 m.). Easy to manoeuvre, Genie work platforms off er durability and the convenience of quick set up and operation. Below are some examples of the lifts that are available.

Aerial Work Platform







Dual Personnel Lift







Industrial Work Platform







Runabout
TRAILER MOUNTED BOOM TZ-34/20

Genie TZ-34/20 is an articulating Trailer Mounted boo m with a telescopic primary boom. With a working height of 12.36m, the TX-3 4/20 features the industries leading working envelope and outreach (6.1m). The TZ-34/20 has a lifting capacity of 200kgs. Hydraulic outriggers are sta ndard and the exclusive automatic levelling system provides 11 degree level ling capability from the ground controls. The system allows the machine to be set up in less that 40 seconds when the operator deploys all four outrig gers simultaneously.








TRAILER MOUNTED BOOM TZ 50-30

The exclusive Genie Automatic Leveling System is =E2 =80=9Cself-leveling=E2=80=9D and is standard equipment on all TZ-50 models. This system provides industry-leading 10 degrees leveling capability and a llows the operator to hydraulically deploy the outriggers and automatically level the machine. Machine setup can be completed in less than 45 seconds when the operator deploys all four outriggers simultaneously.

The sy stem self-levels the machine to 1 degree in all directions. The level senso r alarm will not sound unless the machine is over 21/2 degrees out of level . This built-in tolerance provides resistance to level sensor =E2=80=9Cnuis ance tripping=EF=BF=BD=EF=BF=BD, which can be a common occurrence on other trailer mounted booms. This feature increases productivity and sets the Gen ie TZ-50 apart from the competition.





Scissor Lifts by Genie are the best available. A compe titively priced alterative to aerial work platforms and booms, this scissor lift line is built with the benefits of 30 years experience and applied te chnology. The GS scissor lift series is sturdy, offers narrow access capabi lity, slide out platform extension, quiet electric drives, rough terrian mo dels and working heights from 21 to 32 feet 9 in. (6.4 to 9.8 m.).


GS=E2=84 =A2-1532 / GS=E2=84=A2-1932




Nothing beats a Genie Scissor for performance, safety, serviceability and value.


  • The solid steel deck platform has a slip-resistant surface.
  • Heavy duty tubular steel guardrails maximize durability. Telescopic end rail can be raised to accommodate large loads.
  • Lubrication-free, service-free pivot points.
  • Built-in lanyard attachment points.
  • The ergonomic Joystick Controller operates from the platform or the gro und.
  • Low noise level allows operation in quiet work environments.
  • High angle steering provides excellent maneuverability.
  • Swing-out battery box and power module allow easy access to componentry . Variable speed motor extends battery and motor life by using only the ene rgy needed to do the required work. On-board troubleshooting diagnostics no tify the operators of possible fault conditions.

Standard Features
  • GS-1532 has 21 ft (6.5 m) working height and GS-1932 has 25 ft (7.8 m) working height
  • 39 in (1 m) roll-out platform extension
  • Compact 32 in (81 cm) width
  • 600 lb (272 kg) lift capacity for the GS-1532 and 500 lb (227 kg) lift capacity for the GS-1932
  • Compact design
  • Automatic 25 amp battery charger
  • Proportional controls for lift and drive functions
  • Multiple disc brakes provide smooth deceleration
  • Drive speed interlock limits speed while elevated
  • Emergency stop at both platform and ground controls
  • Manual platform lowering valve
  • Manual brake release
  • Pothole guards
  • Non-marking tires
  • AC wiring to platform
  • Tilt level sensor with an audible alarm
  • Beeper horn
  • Hour meter
Options and Accessories
  • Motion alarm
  • Air line to platform
  • Platform swing gate
  • Dual flashing beacon
  • Maintenance-free battery
Standards Compliance
  • ANSI/SIA A92.6
  • CSA CAN3-B354.2-M82
  • CE compliance option
  • AS 1418.10





GSTM- 4390RT / GSTM- 5390RT






  • Large platform with durable diamond-plate aluminum flooring. A single 6 0 in (1.52 m) multi-position slide-out extension deck, on the front of the machine, comes standard. A second 48 in (1.22 m) slide-out extension deck, on the rear of the machine, is available as an option.
  • Rear platform railing can be removed for easier loading and unloading o f materials.
  • Slide-out engine tray allows easy access to components.
  • Automatic leveling hydraulic outriggers are standard on the GS-5390 RT, optional on the GS-4390 RT.

Standard Features

  • GS-4390 has 49 ft (14.9 m) working height and GS- 5390 RT has 59 ft (18 m) working height
  • 1,500 lb (680 kg) load capacity
  • Positive traction-controlled four-wheel drive
  • 50% gradeability
  • Proportional drive
  • Two-speed lift functions
  • Troubleshooting diagnostics
  • Two self-closing entry gates
  • Foam-filled tires
  • AC wiring to platform
  • Descent alarm
  • Tilt sensor with an audible alarm
  • Horn
  • Hour meter

Options and Accessories

  • Motion alarm
  • Dual flashing beacons
  • Propane tank kit (single and/or additional)
  • Dual slide-out extension deck package (front and rear)
  • Hydraulic oil cooler
  • 2,000 watt generator (110 volt/60 hz)
  • Automatic leveling hydraulic outriggers (GS-4390 RT)
  • Non-marking tires

Standards Compliance

  • ANSI/SIA A92.6
  • CSA CAN3-B354.2-M82
  • CE compliance option
  • AS 1418.10
Genie Lift Telescopic STM St ick Booms set the industry standard for personnel lifts. With work ing heights from 46 to 131 feet (14 to 39.9 m); articulated jibs on the Genie lift S45, S60, S85, S105 and S120 models, and options including two - an d four-wheel drive, rough terrain packages and multi-power capabilities, th e Genie Lift series S 45, S 60, S 85, S 105, S 120 will give you just the l ift you need.

Genie Lift Model S45



S 45




Genie Lift Model S60



S 60


Genie Lift S120

S 120




This is only a small section of the Genie Lift Telescopic Boom range, co ntact us now to further information regarding this range of products.


Genie Lift Articulating "Z" Booms Z30 Z 30 Z45 Z 45 Z1 35 Z135 provide the ultimate in lifting versatility, with up, out and over positioning capabilities. Many Genie lift options are available, including two and four wheel drive, a rough terrain package, narrow access models tha t roll through standard double doorways; gas/lpg, diesel, electric, bi-fuel or tri-fuel capabilities. Choose from the Genie Lift Z30 Z 30 Z45 Z 45 Z13 5 Z135 models with working heights from 26 to 66 feet ( 7.9 to 20.1 m.); ho rizontal reach from 8 to 34 feet (2.4 to 10.4 m.).



Genie Model Z 30

Z 30


Genie Model Z45

Z 45


Genie Model Z135

Z 135



TELEHANDLERS

Rough Terrain Telescopic Boom Material Handler

Genie Telehandlers are the perfect heavy-duty choice for loading, unloading, moving and placing loads or materials throughout any work site and cleaning up when the project is complete. Our high reach rough terrain telehandlers are the ultimate solution for maximizing work site productivity throu gh efficient movement of material. All-around, cost-effective, reliable machines with multiple attachments available for increased ROI on any job site .





Product



Max lift height Max lift capacity Maximum Forward Reach
GT H=E2=84=A2-5519 Compact Rough Terrain Telehandler



18 ft 10 in
(5.74m)
5, 500 lbs
(2,500 kg)
11 ft 3 in
(3.43 m)
GT H=E2=84=A2-6622 Compact Rough Terrain Telehandler



22 ft 5 in
(6.83 m)
6, 600 lbs
(3,000 kg)
12 ft 9 in
(3.89 m)
GT H=E2=84=A2-636 High Reach Rough Terrain Telehandler



36 ft
(10.97 m)
6, 000 lbs
(2,722 kg)
21 ft
(6.40 m)
GT H=E2=84=A2-644 High Reach Rough Terrain Telehandler



44 ft
(13.41 m)
6, 000 lbs
(2,722 kg)
27 ft
(8.23 m)
GT H=E2=84=A2-842 High Reach Rough Terrain Telehandler



42 ft
(12.80 m)
8, 000 lbs
(3,629 kg)
25 ft
(7.62 m)
GT H=E2=84=A2-844 High Reach Rough Terrain Telehandler



44 ft
(13.41 m)
8, 000 lbs
(3,629 kg)
27 ft
(8.23 m)
GTH=E2=84=A2-10 48 High Reach Rough Terrain Telehandler



48 ft
(14.63 m)
10,000 lbs
( 4,536 kg)
31 ft
(9.45 m)
GTH=E2=84=A2-10 56 High Reach Rough Terrain Telehandler



56 ft
(17.07 m)
10 ,000 lbs
(4,536 kg)
40 ft
(12.19 m)

IPAF TRAINING



IPAF Training provided by PAS training to IPAF (International Powered Access Federation) standard.


IPAF Training can either be carried out at your premises or we can a rrange for it to take place at a training facility in the Midlands, London or Scotland











  PASMA TRAINING





We provide both Basic and Advanced, Alloy Tower Scaffold Training to PASMA
Standard, either at a Training Centre in the Midlands, London or Scotland or at your own promises.









  IPAF Safety Harness Training

We provide Training for Safe Use, Fitting of and Inspection of, Safety
Harnesses at a Training Centre in London, Midlands or Scotland Depot or at your premises. Courses can be
carried out in conjunction with any IPAF  Training Course.










Used Genie lifting and access equipment.
We have a constant stock of used Genie Equipment for sale and we also sell off demonstrati on kit before it is 12 months old. Below is just a brief list of the stock we have for sale:-


Genie Electric Scissors
GS1930
GS2032
GS2046
GS3246


Genie Diesel Scissors
GS3628 RT 4WD


Genie Electric Articulated Booms
Z30/20N
Z34/22N
Z45/22
Z45/25 =E2=80=93 Jib


Genie Bi-Energy Articulated Booms
Z45/22
Z45/25


Genie Diesel Articulated Booms
Z34/22
Z45/22
Z45/25
Z60/34


Genie Diesel Telescopic Booms
S40
S45
S60
S80
S85
S65


If there is a used Genie model you are looking for that is not listed call our office on 01530 525136

Demonstration machine prices available on request.

Spare parts for Genie JLG Manitou Upright SkyJack Nifty Haulotte.
We are able to supply a full range of spare parts for the following makes of equipment.




PAS pride ourselves on the ability to provide an on site demonstration of all our products. This demonstration enables you as a customer to see the benefits of a particular product on site prior to purchasing.

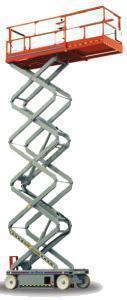

SkyJack SJ111 3219 Scissor Lift

SkyJack SJ111 3219 Scissor Lift
This compact scissor lift is highly manouevrable and is perfect in tight spaces and will fit through standard doorways.
It features a 900mm roll out deck extension, solid rubber non-marking tyres, pot hole protection and dual parking brakes.

Features
  • Driveable at full height
  • Universal battery charger
  • Colour coded and numbered wiring system
  • Swing out trays for easy access
  • Joystick proportional control for drive/lift
  • Tilt alarm with drive/lift cut out
  • Wiring for AC outlet
  • Lanyard attachment points
  • Lowering warning system
  • Overload sensing system
  • Forklift pockets, tie downs, lifting lugs
  • Operator horn
  • 24 volt battery power
  • Base controls
  • Spring loaded half height gate
Specifications
  • Working height 7.6 metres
  • Platform height 5.8 metres
  • Lowered platform height 0.99 metres
  • Width 810mm x length 1780mm x 2110mm height (railings up) 1750mm (railings down)
  • 23% gradeability
  • Cage capacity 227kg
  • 2 persons maximum
  • Platform size 660mm x 1570mm
  • Travel speed 3.2km/hour
  • Lift time 25 seconds
  • Weight 1170kg

The Skyjack SJ3219 is a versatile, manoeuvrable and reliable scissor lift platform capable of working at heights of up to 7.6m.
Variable speed hydraulic drive • Zero inside turning radius • 24v DC power source • Lowering warning system • Capacity up to 249kg


SkyJack SJ111 3219 Scissor Lift
(SKJ1001) £7549.00 plus. VAT


SkyJack SJ111 3226 Scissor Lift

SkyJack SJ111 3226 Scissor Lift
This conventional scissor lift offers rugged, reliable performance for all on- slab applications.
It features a 900mm roll out deck extension, solid rubber non-marking tyres, pot hole protection and dual parking brakes.

Features
  • Driveable at full height
  • Universal battery charger
  • Colour coded and numbered wiring system
  • Swing out trays for easy access
  • Joystick proportional control for drive/lift
  • Tilt alarm with drive/lift cut out
  • Wiring for AC outlet
  • Lanyard attachment points
  • Lowering warning system
  • Overload sensing system
  • Forklift pockets, tie downs, lifting lugs
  • Operator horn
  • 24 volt battery power
  • Base controls
  • Hinged railing system
  • Spring loaded half height gate
Specifications
  • Working height 9.7 metres
  • Platform height 7.9 metres
  • Lowered platform height 1.15 metres
  • Width 840mm x length 2320mm x 2270mm height (railings up) 1940mm (railings down)
  • 25% gradeability
  • Cage capacity 227kg
  • 2 persons maximum
  • Platform size 710mm x 2130mm
  • Travel speed 3.2km/hour
  • Lift time 56 seconds
  • Weight 1864kg

SkyJack SJ111 3226 Scissor Lift
(SKJ1002) £9989.00 plus VAT

SkyJack SJ111 4626 Scissor Lift

SkyJack SJ111 4626 Scissor Lift
This conventional scissor lift offers rugged, reliable performance for all on- slab applications.
It features a 900mm roll out deck extension, solid rubber non-marking tyres, pot hole protection and dual parking brakes.

Features
  • Driveable at full height
  • Universal battery charger
  • Colour coded and numbered wiring system
  • Swing out trays for easy access
  • Joystick proportional control for drive/lift
  • Tilt alarm with drive/lift cut out
  • Wiring for AC outlet
  • Lanyard attachment points
  • Lowering warning system
  • Overload sensing system
  • Forklift pockets, tie downs, lifting lugs
  • Operator horn
  • 24 volt battery power
  • Base controls
  • Hinged railing system
  • Spring loaded half height gate
Specifications
  • Working height 9.7 metres
  • Platform height 7.9 metres
  • Lowered platform height 1.14 metres
  • Width 1170mm x length 2310mm x 2150mm height (railings up) 1870mm (railings down)
  • 25% gradeability
  • Cage capacity 454kg
  • 3 persons maximum
  • Platform size 1070mm x 2110mm
  • Travel speed 3.2km/hour
  • Lift time 55 seconds
  • Weight 2130kg



SkyJack SJ111 4626 Scissor Lift
(SKJ1003) £9987.00 plus VAT

SkyJack SJ111 4632 Scissor Lift

SkyJack SJ111 4632 Scissor Lift
This conventional scissor lift offers rugged, reliable performance for all on- slab applications.
It features a 900mm roll out deck extension, solid rubber non-marking tyres, pot hole protection and dual parking brakes.

Features
  • Driveable up to 8 metres
  • Universal battery charger
  • Colour coded and numbered wiring system
  • Swing out trays for easy access
  • Joystick proportional control for drive/lift
  • Tilt alarm with drive/lift cut out
  • Wiring for AC outlet
  • Lanyard attachment points
  • Lowering warning system
  • Overload sensing system
  • Forklift pockets, tie downs, lifting lugs
  • Operator horn
  • 24 volt battery power
  • Base controls
  • Hinged railing system
  • Spring loaded half height gate
Specifications
  • Working height 11.6 metres
  • Platform height 9.7 metres
  • Lowered platform height 1.23 metres
  • Width 1170mm x length 2310mm x 2240mm height (railings up) 1960mm (railings down)
  • 25% gradeability
  • Cage capacity 318kg
  • 2 persons maximum
  • Platform size 1070mm x 2110mm
  • Travel speed 3.2km/hour
  • Lift time 59 seconds
  • Weight 2300kg



SkyJack SJ111 4632 Scissor Lift
(SKJ1004) £12449.00 plus VAT

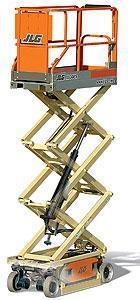

JLG 1930ES Scissor Lift

JLG 1930ES Scissor Lift
This scissor lift is only 0.76m wide, slim enough to fit through standard doorways and down narrow aisles. Front wheel drive and front wheel steering give superior manouvrability in tight places.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height –Elevated 5.72 m (18 ft. 9 in.)
  • Platform Height – Lowered 0.86 m (2 ft. 10 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 1.98 m (6 ft. 5 in.)
  • Platform Dimensions 0.76 m x 1.87 m (2 ft. 6 in. x 6 ft. 1.5 in.)
  • Platform Extension 0.90 m (2 ft. 11.5 in.)
  • Overall Machine Length 1.87 m (6 ft. 1.5 in.)
  • Overall Machine Width 0.76 m (30 in.)
  • Wheelbase 1.60 m (5 ft. 3 in.)
  • Ground Clearance 0.09 m (3.5 in.)
  • Tyre Size, (Non-Marking Solid) 318 mm x 100 mm (12.5 in. x 4 in.)
  • Max. Platform Capacity 230 kg (500 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 22/28 seconds
  • Maximum Drive Height 5.72 m (18 ft. 9 in.)
  • Drive Speed, Lowered 4.8 kph (3.0 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 1.75 m (5 ft. 9 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Fixed Clearance Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 1,565 kg (3,450 lbs.)
  • Rail Type Fixed
  • Drive 6kW (8 hp)


JLG 1930ES Scissor Lift
(JLG1015) £88849.00 plus VAT

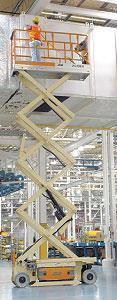

JLG 2030ES Scissor Lift

JLG 2030ES Scissor Lift
This scissor lift is only 0.76m wide, slim enough to fit through standard doorways and down narrow aisles. Front wheel drive and front wheel steering give superior manouvrability in tight places.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height –Elevated 6.10 m (20 ft.)
  • Platform Height – 1.10 m (3 ft. 7.5 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 2.20 m (7 ft. 3 in.)
  • With Rails Folded 1.81 m (5 ft. 11.5 in.)
  • Platform Dimensions 0.76 m x 2.30 m (2 ft. 6 in. x 7 ft. 6.5 in.)
  • Platform Extension 0.90 m (2 ft. 11.5 in.)
  • Overall Machine Length 2.30 m (7 ft. 6.5 in.)
  • Overall Machine Width 0.76 m (30 in.)
  • Wheelbase 1.88 m (6 ft. 2 in.)
  • Ground Clearance 0.09 m (3.5 in.)
  • Tyre Size, (Non-Marking Solid) 406 mm x 125 mm (16 in. x 5 in.)
  • Max. Platform Capacity 360 kg (800 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 30/30 seconds
  • Maximum Drive Height 6.10 m (20 ft.)
  • Drive Speed, Lowered 4.4 kph (2.75 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 2.06 m (6 ft. 9 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Fixed Clearance Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 2,020 kg (4,450 lbs.)
  • Rail Type Fold Down
  • Drive 6kW (8 hp)


JLG 2030ES Scissor Lift
(JLG1016) £9189.00 plus VAT

JLG 2630ES Scissor Lift

JLG 2630ES Scissor Lift
This scissor lift is only 0.76m wide, slim enough to fit through standard doorways and down narrow aisles. Front wheel drive and front wheel steering give superior manouvrability in tight places.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height – 7.75 m (25 ft. 5 in.)
  • Platform Height – 1.23 m (4 ft. 0.5 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 2.20 m (7 ft. 3 in.)
  • With Rails Folded 1.94 m (6 ft. 4.5 in.)
  • Platform Dimensions 0.76 m x 2.30 m (2 ft. 6 in. x 7 ft. 6.5 in.)
  • Platform Extension 0.90 m (2 ft. 11.5 in.)
  • Overall Machine Length 2.30 m (7 ft. 6.5 in.)
  • Overall Machine Width 0.76 m (30 in.)
  • Wheelbase 1.88 m (6 ft. 2 in.)
  • Ground Clearance 0.09 m (3.5 in.)
  • Tyre Size, (Non-Marking Solid) 406 mm x 125 mm (16 in. x 5 in.)
  • Max. Platform Capacity 230 kg (500 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 40/40 seconds
  • Maximum Drive Height 7.75 m (25 ft. 5 in.)
  • Drive Speed, Lowered 4.4 kph (2.75 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 2.06 m (6 ft. 9 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Fixed Clearance Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 2,155 kg (4,750 lbs.)
  • Rail Type Fold Down
  • Drive 6kW (8 hp)



JLG 2630ES Scissor Lift
(JLG1017) £10784.00 plus VAT

JLG 2646ES Scissor Lift

JLG 2646ES Scissor Lift
A larger scissor lift with more capacity and more working room and 26ft platform height.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height Elevated– 7.92 m (26 ft.)
  • Platform Height Lowered – 1.26 m (4 ft. 1.5 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 2.33 m (7 ft. 3 in.)
  • With Rails Folded 1.94 m (6 ft. 4.5 in.)
  • Platform Dimensions 1.12 m x 2.50 m (3 ft. 8 in. x 8 ft. 2.5 in.)
  • Platform Extension 1.27 m (4 ft. 2 in.)
  • Overall Machine Length 2.50 m (8 ft. 2.5 in.)
  • Overall Machine Width 1.17 m (46 in.)
  • Wheelbase 2.09 m (6 ft. 10.5 in.)
  • Ground Clearance 0.14 m (5.5 in.)
  • Tyre Size, (Non-Marking Solid) 406 mm x 125 mm (16 in. x 5 in.)
  • Max. Platform Capacity 450 kg (1,000 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 40/40 seconds
  • Maximum Drive Height 7.92 m (26 ft.)
  • Drive Speed, Lowered 4.0 kph (2.5 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 2.41 m ( 7 ft. 11 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Pressure Balanced Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 2,550 kg (5,620 lbs.)
  • Rail Type Fold Down
  • Drive 6kW (8 hp)



JLG 2646ES Scissor Lift
(JLG1018) £11995.00 plus VAT

JLG 3246ES Scissor Lift

JLG 3246ES Scissor Lift
A larger scissor lift with more capacity and more working room and 32ft platform height.
Proportional drive and lift controls make one man operation simple.
CE rated for indoor/outdoor use.

Specifications
  • Platform Height Elevated– 9.68 m (31 ft. 9 in.)
  • Platform Height Lowered – 1.26 m (4 ft. 1.5 in.)
  • Platform Railing Height 1.10 m (3 ft. 7.5 in.)
  • Overall Height 2.33 m (7 ft. 3 in.)
  • With Rails Folded 1.94 m (6 ft. 4.5 in.)
  • Platform Dimensions 1.12 m x 2.50 m (3 ft. 8 in. x 8 ft. 2.5 in.)
  • Platform Extension 1.27 m (4 ft. 2 in.)
  • Overall Machine Length 2.50 m (8 ft. 2.5 in.)
  • Overall Machine Width 1.17 m (46 in.)
  • Wheelbase 2.09 m (6 ft. 10.5 in.)
  • Ground Clearance 0.14 m (5.5 in.)
  • Tyre Size, (Non-Marking Solid) 406 mm x 125 mm (16 in. x 5 in.)
  • Max. Platform Capacity 320 kg (700 lbs.)
  • Capacity On Deck Extension 120 kg (250 lbs.)
  • Lift/Lower Time 50/50 seconds
  • Maximum Drive Height 9.68 m (31ft. 9 in.)
  • Drive Speed, Lowered 4.0 kph (2.5 mph)
  • Drive Speed, Elevated 0.8 kph (0.5 mph)
  • Gradeability 25%
  • Turning Radius (Outside) 2.41 m ( 7 ft. 11 in.)
  • Batteries 4 x 6V, 220 amp-hr
  • Charger 20 Amp Automatic (120V/240V–50/60HZ)
  • Pump Pressure Balanced Gear
  • Brakes (On Drive Wheels) Electric, Auto Friction
  • Gross Vehicle Weight 2,725 kg (6,000 lbs.)
  • Rail Type Fold Down
  • Drive 6kW (8 hp)



JLG 3246ES Scissor Lift
(JLG1019) £13489.00 plus VAT

Upright TM12 Telescopic Mast

Upright TM12 Telescopic Mast
The Upright TM12 provides a safe, efficient means of working at height in restricted spaces typically encountered in offices, retail stores, hotels, public buildings or crowded industrial aisles. Its compact size also makes it ideal for applications such as stock picking and record storage retrieval. Operators simply step onto the platform, drive to the work location and elevate to the desired height. When the job is complete, the lift can be quickly lowered and returned to a convenient storage area.
Specifications
  • Maximum platform capacity 227kg
  • Inside platform size 0.74m x 1.04m
  • Weight 776kg
  • Working height 5.8m
  • Platform height 5.66m
  • Stowed height 1.7m
  • Maximum driving height 3.66m
  • Length 1.36m
  • Width 0.76m
  • Maximum drive speed 3.65km/h
  • Maximum drive speed with platform raised 0.87km/h
  • Gradeability 14deg/25deg
  • Inside turning radius 0.37m
  • Ground clearance 76mm
  • Lift speed raise17sec lower 25sec
  • Toe boards 152mm
  • Control system - proportional joystick type
  • Drive system - dual front wheel hydraulic motors
  • Power source 24volt 4hp electric motor
  • 4 x 220 ah batteries
  • 25 amp automatic battery charger
  • 2 wheel, spring applied hydraulic release parking brake with manual override
Standard Features
  • Non marking tyres
  • Automatic low drive speed when elevated
  • Descent, tilt and overload alarms
  • Selectable motion alarm
  • Hour meter/battery level indicator
  • Emergency lowering at ground level

  • Drives through standard doorway with operator in platform
  • Transportable in most passenger lifts
  • 227kg platform capacity for two people plus tools
  • Hydraulic pothole protection system
  • Five year structural warranty
  • CE approved



Upright TM12 Telescopic Mast
(PL1008) £7498.00 plus VAT

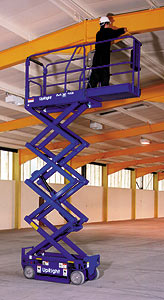

Upright MX19 Scissor Lift

Upright MX19 Scissor Lift
A highly manoeuvrable scissor lift with an extending platform and approximately 25ft working height.
Specifications
  • Maximum platform capacity 227kg (for outdoor use capacity is reduced to one person plus tools)
  • Inside platform size extended 0.72m x 2.5m
  • Weight 1134kg
  • Working height 7.8m
  • Platform height 5.8m
  • Stowed height 2m
  • Maximum driving height 5.8m
  • Length 1.75m
  • Overall length deck extended 2.5m
  • Width 0.75m
  • Maximum drive speed 4.4km/h
  • Maximum drive speed with platform raised 0.6km/h
  • Gradeability 25%
  • Inside turning radius 25.4mm
  • Ground clearance 95mm
  • Lift speed 15 seconds
  • Toe boards 152mm
  • Control system - proportional joystick type
  • Drive system - dual front wheel hydraulic motors
  • Power source 24volt 4hp electric motor
  • 4 x 220 ah batteries
  • 25 amp automatic battery charger
  • 2 wheel, spring applied hydraulic release parking brake with manual override
Standard Features
  • Roll out deck extension
  • PPE scissor guarding system
  • Swing out service modules
  • Descent and tilt alarms
  • Hour meter/battery level indicator
  • Hydraulic pot-hole protection
  • Lift up rear handrail to ease loading
  • Ground view grates in deck extension
  • Crane and fork lift points
  • Emergency lowering at ground level

  • Extremely tight turning radius and compact dimensions give excellent manoervrability
  • Roll-out deck extension provides larger working platform area and over-reach facility
  • Hydraulic pothole protection system
  • Five year structural warranty
  • CE approved



Upright MX19 Scissor Lift
(PL1009) £8448.00 plus VAT

Upright SL20 Personnel Lift

Upright SL20 Personnel Lift
Proven with users world wide, the SL20 has earned itself a reputation for reliability and performance second to none. Improved design provides a low stowed height and greater manoeuvrability. This narrow aisle machine incorporates many features including one-hand proportional joystick control, roll out deck extension, non marking tyres and hydraulic pothole protection.
Specifications
  • Maximum platform capacity 340kg
  • Weight 1405kg
  • Working height 8.1m
  • Platform height 6.1m
  • Stowed height 2.01m
  • Length 2.75m
  • Width 0.84m
  • Maximum drive speed 3.7km/h
  • Gradeability 25%
  • Inside turning radius 0.63m
  • Power source 24volt 4hp electric motor
  • 4 x 220 ah batteries
  • 25 amp automatic battery charger
Standard Features
  • Roll out deck extension
  • Hydraulic pot-hole protection
  • One hand proportional joystick control
  • Low stowed height with guard rails in place
  • Quick access to service points



Upright SL20 Personnel Lift
(PL1010) £27498.00 plus VAT

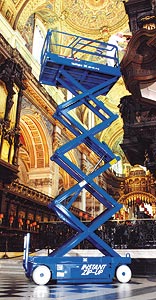

Upright X26 Scissor Lift

Upright X26 Scissor Lift
The X series from Upright are formidable machines,designed to provide an efficient solution for all your property maintenance and installation tasks with an unrivalled performance unmatched at the price.
The secret of the X series astonishing versatility lies in its impressive specification. Compact dimensions and a tight turning radius make manoeuvring easy in restricted locations whilst the roll out deck extension provides a large working platform area and over-reach facility.
With working heights up to 11.8 metres and modern scissor design for extra rigidity it's easy to see why the X series is one of the world's best selling platforms.

Specifications
  • Maximum platform capacity 454kg
  • Inside platform size 1.17m x 2.21m
  • Platform size extended 1.17m x 3.13m
  • Weight 2153kg
  • Working height 10m
  • Platform height 8m
  • Minimum platform height 1.09m
  • Length 2.5m
  • Length deck extended 3.26m
  • Width 1.22m
  • Height guardrails up 2.11m
  • Height guardrails lowered 1.98m
  • Maximum drive speed 3.7km/h
  • Maximum drive speed with platform raised 1.2km/h
  • Gradeability 22%
  • Inside turning radius 200mm
  • Lift speed raise38sec lower 42sec
  • Toe boards 152mm
  • Control system - proportional joystick type
  • Power source 24volt 4hp electric motor
  • 4 x 220 ah batteries
Standard Features
  • Non marking tyres
  • PPE scissor guarding system
  • Descent and tilt alarms
  • Roll out deck extension
  • One hand joystick control
  • Swing out service modules
  • Chassis key switch
  • Hydraulic pot-hole protetion
  • Fork lift points
  • CE approved




    Upright X26 Scissor Lift
    (PL1011) £11497.00 plus VAT

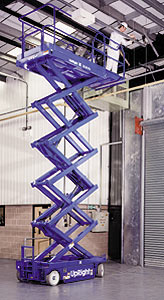

    Upright X32 Scissor Lift

    Upright X32 Scissor Lift
    The X series from Upright are formidable machines, designed to provide an efficient solution for all your property maintenance and installation tasks with an unrivalled performance unmatched at the price.
    The secret of the X series astonishing versatility lies in its impressive specification. Compact dimensions and a tight turning radius make manoeuvring easy in restricted locations whilst the roll out deck extension provides a large working platform area and over-reach facility.
    With working heights up to 11.8 metres and modern scissor design for extra rigidity it's easy to see why the X series is one of the world's best selling platforms.

    Specifications
    • Maximum platform capacity 317kg
    • Inside platform size 1.17m x 2.21m
    • Platform size extended 1.17m x 3.13m
    • Weight 2531kg
    • Working height 11.8m
    • Platform height 9.8m
    • Minimum platform height 1.09m
    • Length 2.5m
    • Length deck extended 3.26m
    • Width 1.22m
    • Height guardrails up 2.26m
    • Height guardrails lowered 1.88m
    • Maximum drive speed 3.7km/h
    • Maximum drive speed with platform raised 1.2km/h
    • Gradeability 20%
    • Inside turning radius 200mm
    • Lift speed raise 66sec lower 39sec
    • Toe boards 152mm
    • Control system - proportional joystick type
    • Power source 24volt 4hp electric motor
    • 4 x 220 ah batteries
    Standard Features
    • Non marking tyres
    • PPE scissor guarding system
    • Descent and tilt alarms
    • Roll out deck extension
    • One hand joystick control
    • Swing out service modules
    • Chassis key switch
    • Hydraulic pot-hole protection
    • Fork lift points
    • CE approved




      Upright X32 Scissor Lift
      (PL1012) £11998.00 plus VAT

      Upright MB20N Mast Boom Lift

      Upright MB20N Mast Boom Lift
      The MB20N and MB26 Mast Boom Lifts have been equiped to give maximum productivity in minimum space. With working heights between 26ft and 32ft and nearly 10ft of outreach, the MB Mast Booms really are versatile performers. The articulating jib coupled with 360 degree rotation gives access to hard to reach areas plus the compact dimensions and tight turning radius make manoeuvring easy in any work place. Ideal areas for the versatile Mast Boom are manufacturing plants, supermarkets, shopping centres, hotels, hospitals and warehouses.
      Specifications
      • Maximum platform capacity 215kg
      • Inside platform size 0.78m x 0.73m
      • Weight 570kg
      • Working height 8m
      • Platform height 6m
      • Working outreach 2.13m
      • Length 2.2m
      • Width 0.81m
      • Height 1.98m
      • Maximum drive speed 3.0km/h
      • Maximum drive speed with platform raised 0.7km/h
      • Gradeability 25%
      • Inside turning radius 300mm
      • Outside turning radius 1.85m
      • Tail swing 250mm
      • Jib arc 138 degrees
      • Mast rotation 360 deg - non continuous
      • Control system - proportional joystick type
      • Power source 24volt electric motor
      • 4 x 375 ah batteries
      Standard Features
      • Non marking tyres
      • Proportional one handed controller
      • Tilt alarm
      • Two person basket
      • Rated for outdoor use
      • Ground control station
      • Automatic battery top up
      • 5 year structural warranty
      • CE approved




        Upright MB20N Mast Boom Lift
        (PL1013) £14998.00 plus VAT

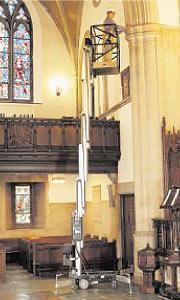

        JLG Accessmaster 15AMI Personnel Lift

        JLG Accessmaster 15AMI Personnel Lift

        Sturdy push-around lift that doesn't need stabilsers, making it ideal for those tight access situations. Easy to use one man operation and easy to load and transport. Small enough to go through standard doorways.
        On board charger for the battery operated anodised mast and non-marking tyres.



        Specifications
        • Platform Height 4.57 m
        • Platform Capacity 160 kg
        • Overall Height - Stowed 1.97 m
        • Overall Width - Stowed 0.74 m
        • Overall Length - Stowed 1.33 m
        • Overall Length ??? Without Platform 1.33 m
        • Ground Entry Height 0.48 m
        • Distance to Wall – Side 0.04 m
        • Gross Vehicle Weight – DC * 450 kg
        • Also available as AC machine



        JLG Accessmaster 15AMI Personnel Lift
        (JLG1001) £4839.00 plus VAT

        JLG Accessmaster 20AM Personnel Lift

        JLG Accessmaster 20AM Personnel Lift

        Sturdy push-around lift fitted with stabilisers for extra stability. Easy to use one man operation and easy to load and transport. Small enough to go through standard doorways.
        On board charger for the battery operated anodised mast and non-marking tyres.



        Specifications
        • Platform Height 6.22 m
        • Platform Capacity 160 kg
        • Overall Height - Stowed 1.97 m
        • Overall Width - Stowed 0.74 m
        • Overall Length - Stowed 1.19 m
        • Overall Length – Without Platform 1.19 m
        • Ground Entry Height 0.48 m
        • Outrigger Footprint Length 1.73 m
        • Outrigger Footprint Width 1.57 m
        • Distance to Wall - Front 0.28 m
        • Distance to Wall – Side 0.04 m
        • Gross Vehicle Weight 356 kg
        • Also available as AC machine



        JLG Accessmaster 20AM Personnel Lift
        (JLG1002) £4998.00 plus VAT

        JLG Accessmaster 25AM Personnel Lift

        JLG Accessmaster 25AM Personnel Lift

        Sturdy push-around lift fitted with stabilisers for extra stability. Easy to use one man operation and easy to load and transport. Small enough to go through standard doorways.
        On board charger for the battery operated anodised mast and non-marking tyres.



        Specifications
        • Platform Height 7.67 m
        • Platform Capacity 160 kg
        • Overall Height - Stowed 1.97 m
        • Overall Width - Stowed 0.74 m
        • Overall Length - Stowed 1.24 m
        • Overall Length – Without Platform 1.19 m
        • Ground Entry Height 0.48 m
        • Outrigger Footprint Length 1.73 m
        • Outrigger Footprint Width 1.57 m
        • Distance to Wall - Front 0.20 m
        • Distance to Wall – Side 0.44 m
        • Gross Vehicle Weight 395 kg
        • Also available as AC machine



        JLG Accessmaster 25AM Personnel Lift
        (JLG1003) £5397.00 plus. VAT

        JLG Accessmaster 30AM Personnel Lift

        JLG Accessmaster 30AM Personnel Lift

        Sturdy push-around lift fitted with stabilisers for extra stability. Easy to use one man operation and easy to load and transport.
        On board charger for the battery operated anodised mast and non-marking tyres.




        Specifications
        • Platform Height 9.14 m
        • Platform Capacity 135 kg
        • Overall Height - Stowed 1.97 m
        • Overall Width - Stowed 0.74 m
        • Overall Length - Stowed 1.32 m
        • Overall Length – Without Platform 1.19 m
        • Ground Entry Height 0.48 m
        • Outrigger Footprint Length 1.88 m
        • Outrigger Footprint Width 1.83 m
        • Distance to Wall - Front 0.20 m
        • Distance to Wall – Side 0.60 m
        • Gross Vehicle Weight 470 kg
        • Also available as AC machine



        JLG Accessmaster 30AM Personnel Lift
        (JLG1004) £5989.00 plus VAT

        JLG Accessmaster 41AM Personnel Lift

        JLG Accessmaster 41AM Personnel Lift

        Sturdy push-around lift fitted with stabilisers for extra stability. Easy to use one man operation and easy to load and transport. A tilt-back mechanism allows the machine to go through standard doorways.
        On board charger for the battery operated anodised mast and non-marking tyres.



        Specifications
        • Platform Height 12.42 m
        • Platform Capacity 135 kg
        • Overall Height - Stowed 2.64 m
        • Overall Width - Stowed 0.74 m
        • Overall Length - Stowed 1.46 m
        • Overall Length – Without Platform 1.35 m
        • Overall Height – Tilted Back 1.96 m
        • Overall Length – Tilted Back 2.74 m
        • Ground Entry Height 0.48 m
        • Outrigger Footprint Length 2.13 m
        • Outrigger Footprint Width 2.18 m
        • Distance to Wall - Front 0.34 m
        • Distance to Wall – Side 0.75 m
        • Gross Vehicle Weight 560 kg
        • Also available as AC machine



        JLG Accessmaster 41AM Personnel Lift
        (JLG1006) £6880.00 plus VAT



        Push Around.

        AWP Super Series

        IPW Super Series

        DPL Super Series

        Genie Runabout Series

        Genie Runabout Series GR12, GR15, and GR20

        Genie Electric Scissor Lift Range

        Genie GS 15-30 Scissor Lifts

        Genie GS 19-30 Scissor Lifts

        Genie GS 20-32 Scissor Lifts

        Genie GS 20-46 Scissor Lifts

        Genie GS 26-32 Scissor Lifts

        Genie GS 26-46 Scissor Lifts

        Genie GS 32-32 Scissor Lifts

        Genie GS 32-46 Scissor Lifts

        Genie Articulating Boom Series

         Genie Z30-20N  & Z30-20NRJ Boomlifts

        Genie Z34-22 Boomlifts

        Genie Z40N Boomlifts

        Genie Z45-25J Boomlifts

        Genie Z51-30J Boomlifts

        Genie Z60/34 Boomlifts

        Genie Z80/60 Boomlifts

        Genie Z135/70 Boomlifts



        JLG

        JLG Products available from Powered Access / RAC Kettering.

        Push Around Verticle Lifts.

        JLG P20

        JLG P21

        JLG P25

        JLG P30

        JLG P35

        JLG P40

        Selp Propelled Stock-Picker Verticle Lifts



        JLG 10MSP

        JLG 15MSP



        Selp Propelled Toucan Verticle Lifts

        Toucan Duo

        Toucan Duo

        Toucan Junior 6

        Toucan Junior 8

        Toucan 8 Junior  lite



        Electric Scissor Lifts ES Series

        JLG 19-30ES

        JLG 20-30ES

        JLG 26-30ES

        JLG 26-46ES

        JLG 32-46ES



        Electric Boom Lifts

        E300 Series

        E400/M400 Series

        E400/M400 Narrow Series

        E450/M450 Series

        E600/M600 Sereis

        JLG

        JLG Products available from Northern Access.

        Push Around Verticle Lifts.

        JLG P20

        JLG P21

        JLG P25

        JLG P30

        JLG P35

        JLG P40

        Selp Propelled Stock-Picker Verticle Lifts



        JLG 10MSP

        JLG 15MSP



        Selp Propelled Toucan Verticle Lifts

        Toucan Duo

        Toucan Duo

        Toucan Junior 6

        Toucan Junior 8

        Toucan 8 Junior  lite



        Electric Scissor Lifts ES Series

        JLG 19-30ES

        JLG 20-30ES

        JLG 26-30ES

        JLG 26-46ES

        JLG 32-46ES



        Electric Boom Lifts

        E300 Series

        E400/M400 Series

        E400/M400 Narrow Series

        E450/M450 Series

        E600/M600 Sereis






        Contact Us - About Us  -  Materials Lifts  -  Genie Spare Parts  -  Second Hand Equipment - Cherry Picker HireGenie Lift Equipment (PDF) -  Site Map  -  Home
